PLC Wheel Fitting Press Wheelset Installer And Remover

  • 1
  • 2
  • 3

Brand Name : Heqiang Machinery

Model Number : HQ09

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD76000~130,000 per set

Payment Terms : T/T, L/C

Supply Ability : 30 sets per year

Delivery Time : 4-5 months after down payment

Packaging Details : Nude packages and Wooden cases

Product name : Railway Wheelset Press

Application : Railway workshops

Function : wheelset installation and revoval

Cylinder force : Available from 200 to 500 tons

Action cylinder : Single acting cylinder

Piston stroke : ≥ 700 mm

Power source : Hydraulic

Operation mode : Semi-automatic + Manual

Controls : Siemens PLC + AdvanTech IPC

Warranty : 12 months

Contact Now

Wheel Fitting Press , Wheelset Installer And Remover

Wheelset Press, Wheel Fitting Press, Wheelset Installer and Remover, Wheel Fitting and Pressing-Out Machine

Railway Wheel Press Machine , Hydraulic Wheel Press-Mounting Machine

Hubei Heqiang is the No.1 manufacturer of wheelset presses in China. The wheelset presses are mainly used to mount and dismount the elements on the axle (wheel discs, brake discs and gears etc). With single and double cylinder version available for option and capacity range from 200 to 800 tons as required.

Application Scope:

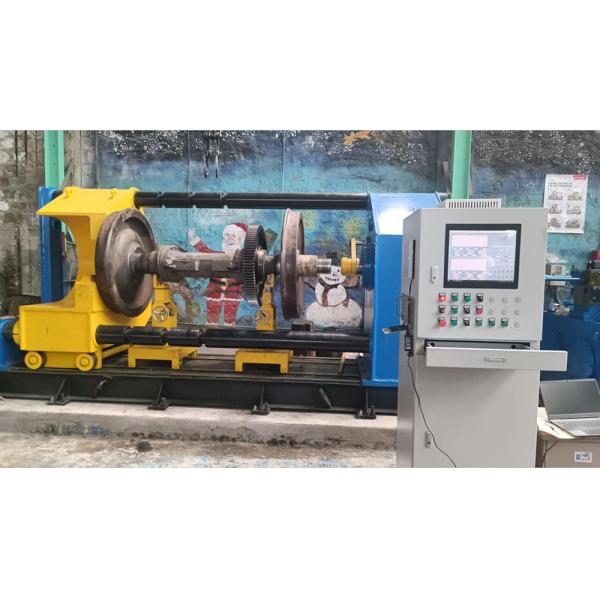

This single cylinder wheel press is used to fit and remove the wheels for the railway cars. With Curve recording system. It needs to reverse the axle to mount or dismount the other wheel. A high-pressure oil injection system is available for option for easy wheel dismounting.

  • Mounting the wheelset wheels (colding pressing or oiling pressing both ok).
  • Dismounting the wheelset wheels with lubricant holes (oiling pressing). (It requires a high-pressure oil injection pump.).
  • Dismounting the wheelset wheels without lubricant holes (cold pressing).

Technical Parameters:

Cylinder force

Available at 200 to 800 tons

Number of Ram cylinder

1 pc (Single-end)

Piston stroke

700 mm

Applicable axle length Maximum 2300 mm
Applicable wheel diameter Maximum 1200 mm

Approach speed

Approx. 10 mm/s

Pressing speed

Approx. 2mm/s

Number of Support trolley

2 sets

Hydraulic system working pressure Max. 31.5 MPa

Main power supply (AC 3-ph)

380V/50Hz or as per required

Control voltage 24V DC
Total installed power ≤ 25 kW
PLC Siemens S7-1200
Industrial computer (IPC) AdvanTech 610L

(*The above parameters are indicative and can be modified as per customer's actual requirements. The customer shall provide the detail wheelset drawings for detail design work after contract awarded.)

Machine Structure and Features:

  • The wheel fitting press is mainly used to mount and dismount the railway wheelsets.
  • This wheel press is also widely used in mining, steel and mechanical applications for assembly and disassembly of motor bearings, bushings, rotors of electric machines and other workpieces.
  • Single action cylinder to mount and dismount the wheelset.
  • It requires to reverse the axle (180°) to mount or dismount the other side after one wheel operation completed.
  • The wheel press mainly consists of cylinder column, movable column, rear column, support rods, chassis, caliper claws, support trolleys, hydraulic system and eletrical control system.
  • With Caliper claws on the movable column to lock the movable column at the required position.
  • With 2 support trolleys for axle supporting. Manually move the trolley and adjust the support height to meet the different wheelsets.
  • Only to replace the pressing tool to meet the different wheelsets.
  • With Siemens PLC and AdvanTech industrial PC.
  • A displacement sensor at the end of the ram cylinder for detecting and displaying the displacement on the industrial PC.
  • With curve recording system and can export the pressing report.
  • A high-pressure oil injection pump is option for easy wheel mounting and dismounting.


Warranty & After-sale Service:

  • One year machine warranty period.
  • Machine body assembled before delivery. Easy for the customer themselves to carry out the installation and commissioning work.
  • Our engineers are available for oversea service to carry out the installation and commissioning work.
  • Also the customer can take this work themselves as per our instructions and we provide free remote guidance.


For more information about the wheel presses, please feel free to contact us.
