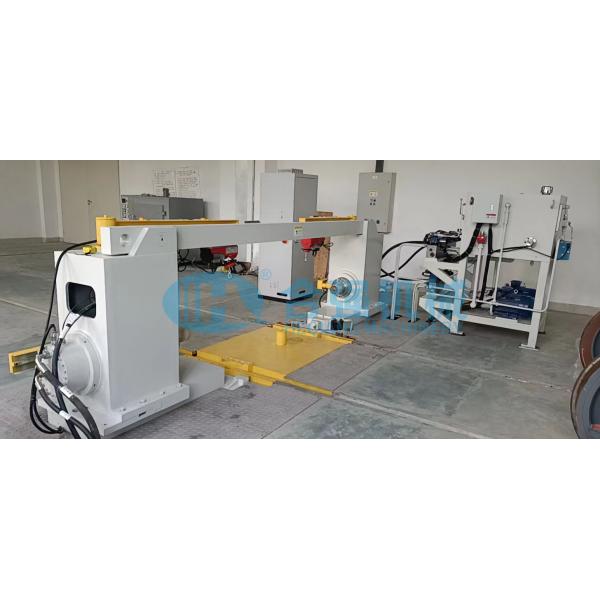

Metro Wheelset Bearing Mounting Press , Axle Box Bearing Assembly Machine

Metro Wheelset Bearing Press Machine , Axle Box Bearing Assembly Machine

Railway Bearing Pusher , Railway Bearing Mount Press , Roller Bearing Installer

Application scope:

This Bearing Mounting Press is mainly used to automatically mount the bearings onto the axle journals for multi metro wheelsets.

It's applicable for the wheelset with gearbox, and also the wheelset with axle box bearing.

Technical parameters:

(*Remarks: The above parameters are indicative and can be modified as per customer's actual requirements.)

Machine features of the Bearing Assembly Press Machine:

• It's applicable for the wheelset with gearbox, and also the wheelset with axle box bearing.

• With small capacity cranes for hoisting the axle box during mounting.

• The bearing mounting press mainly consists of overall gantry frame, two ram cylinders, lifting device, guide device, locking device, measuring device, bearing positioning device, hydraulic system, measurement and electric control system.

• Automatic mounting both bearings simultaneously.

• Automatic mounting separately of single side bearing.
• Only one operator required complete the whole operation.
• For different types of bearing, only need to replace the tooling for the mounting.
• Online pass-through arrangement.
• Double ram cylinders for the mounting operation.
• Special patented upsetting centre devices for positioning.
• Only a single positioning to complete the mounitng of both bearings.
• With automatic and manual modes for the operation.
• Siemens PLC and AdvanTech industrial computer to control the operation.
• With curve recording system.
• It's provided with emergency stop button the control panel.

Warranty & After-sale Service:
The warranty lasts for 1 (one) year from the date of the Site Acceptance Test of the Equipment. During the warranty, the Manufacturer shall be responsible for the damage due to the defects in design and manufacture. After the warranty period, the Manufacturer will provide a wide range of technical support and spare parts with reasonable prices.

Technical Documents:
The following technical documents will be supplied along with the machine when delivery in 3 printed copy and 1 E- copy in English language:

• Operating and maintenance instruction manual.
• General arrangement drawing, Foundation drawing.
• Hydraulic schematic diagram, Electrical schematic diagram.
• List of Spare parts and Special tool.
• Product certificate.
